Tritech Gemini 1200ik Multibeam Imaging Sonar

Tritech Gemini 1200ik Multibeam Imaging Sonar operates at two acoustic frequencies, 720 kHz for long range target detection, and 1200 kHz for enhanced high-resolution imaging

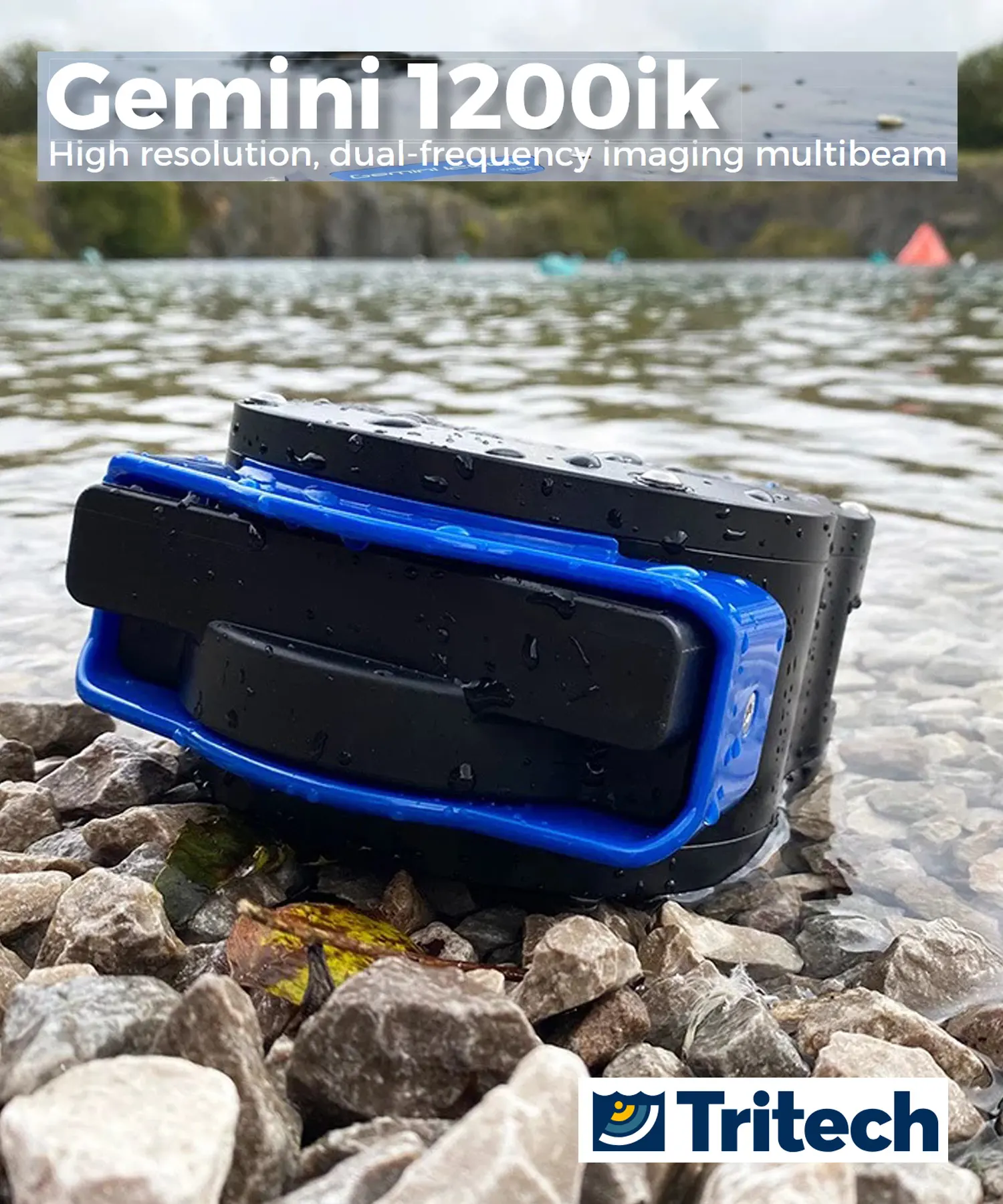

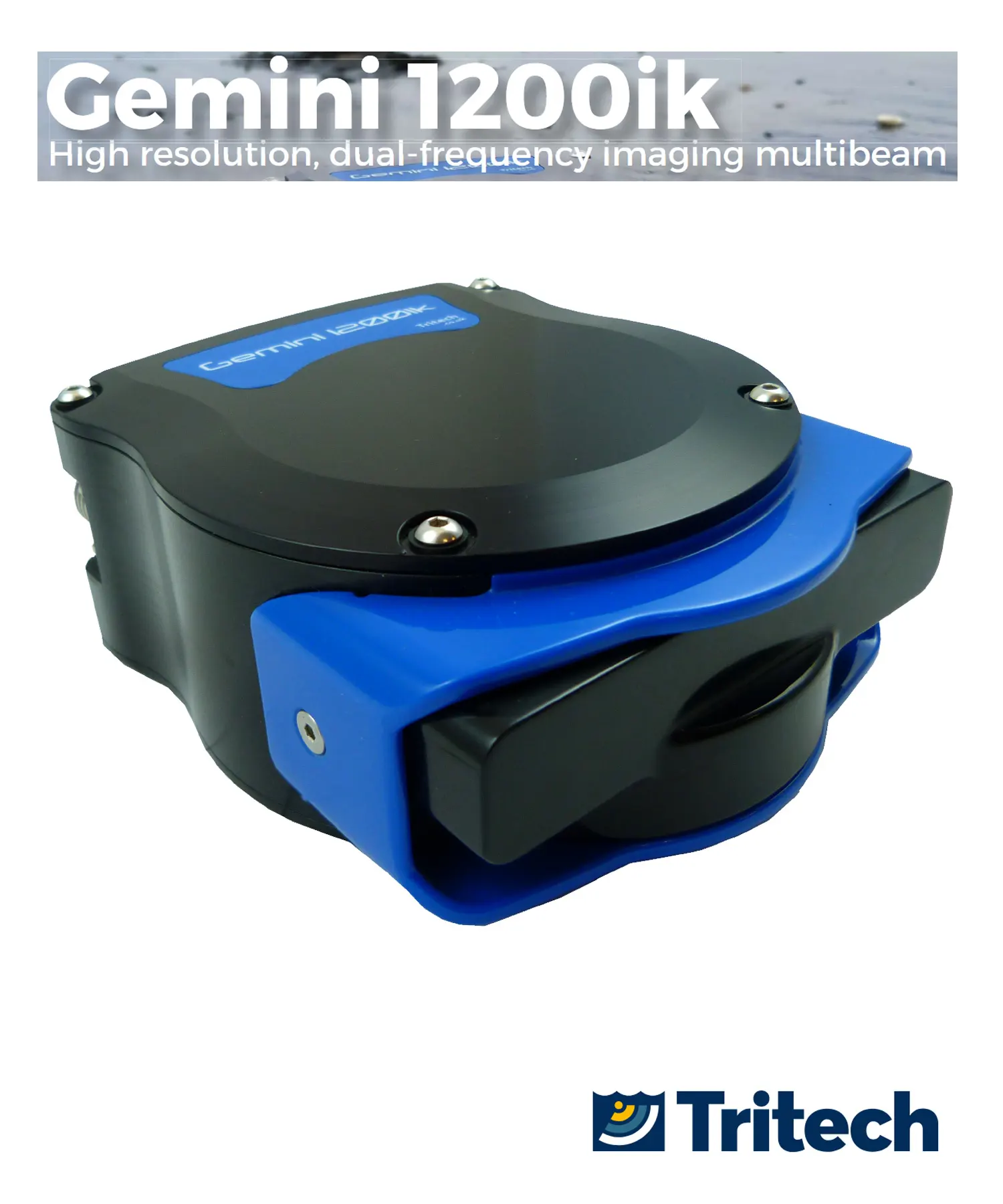

The Tritech Gemini 1200ik multibeam imaging sonar is a powerful addition to the popular Gemini range. The multibeam imaging sonar offers two operational frequencies with the ability to switch between low and high frequency dependent on the user’s requirement. The 720kHz low frequency setting is designed for target identification and obstacle avoidance at long range, whilst the 1200kHz high frequency setting offers extremely detailed multibeam images, ideal for inspection at close range. Switching frequencies can be set to automatically switch over at a specific range or done manually.

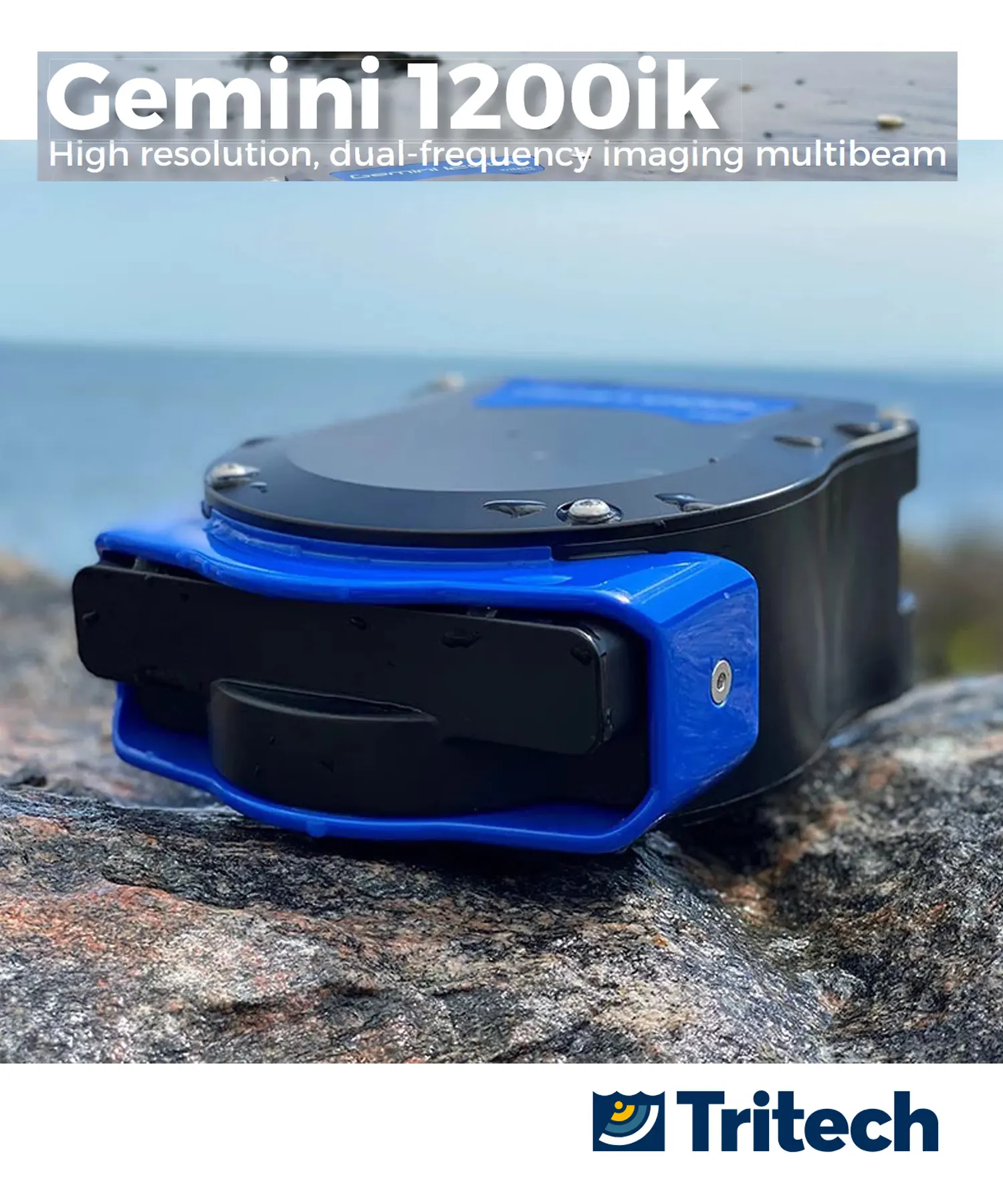

Gemini 1200ik | High resolution, dual-frequency imaging multibeam

The Tritech Gemini 1200ik multibeam sonar operates at two acoustic frequencies, 720kHz for long range target detection, and 1200KHz for enhanced high resolution imaging at shorter ranges. Switching between acoustic frequencies is done either manually or automatically at a range set by the user.

Applications

- ROV/AUV navigation
- Obstacle avoidance
- Detailed object imaging
- Diver Mounted Display
- Subsea monitoring and inspection

Benefits

- Switch between 720kHz and 1200kHz
- Long range object detection
- Short range detailed imaging
- Compact and eas- to install
- 350m depth rating

Features

- Real-time updates for video-like imagery
- 120° field of view
- CHIRP processing
- Integrated velocimeter for accurate ranging
- Software development kit available

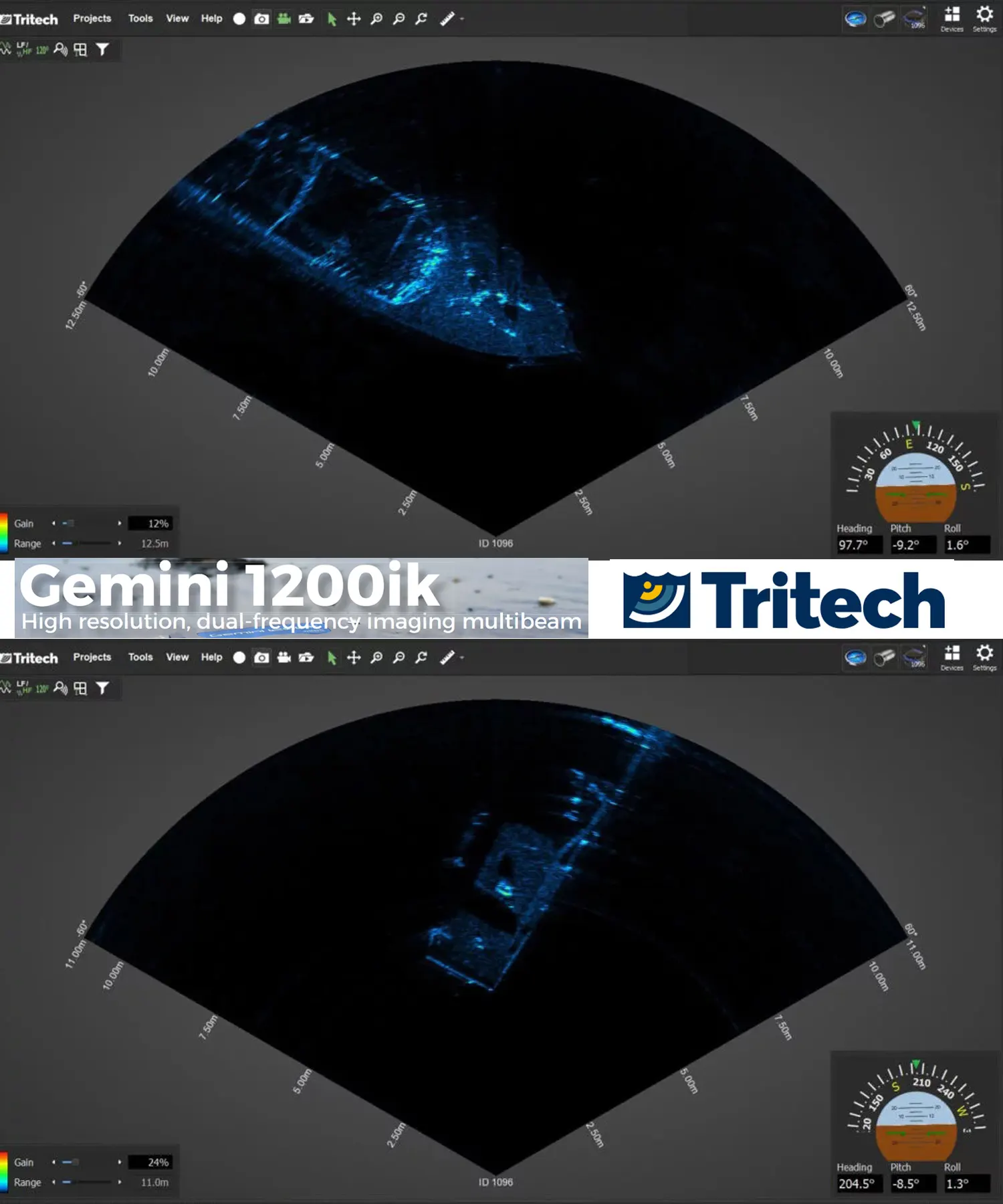

Unique to the 1200ik is the ability to maintain a 120° field of view when operating at high frequency. This allows the target of interest to remain within view at all times, even when the target is in the nearfield. CHIRP processing ensures that the Gemini 1200ik can provide high-resolution imaging at longer ranges,while the integrated VOS sensor ensures the image is displayed at a high degree of accuracy.Operating  to a depth of 350m, the Gemini 1200ik can be used on a range of small to mid-size vehicles, as well as installed on larger vehicles operating in shallow water.

The Gemini 1200ik is fully compatible with Tritech’s software package, Genesis, which improves userinteraction and allows control of a number of Tritech sensors from within one software package. With the same physical size and identical interface connection, the Gemini 1200ik can be swapped out with any 720ik which is already installed, providing an easy upgrade path to higher resolution imaging.

Technical information

Key Specification (Low Frequency Mode / High Frequency Mode)

• Operating frequency: 720 kHz / 1200 kHz
• Angular resolution: 1.0° acoustic, 0.25° effective / 0.6° acoustic, 0.12° effective
• Range: 0.1 m – 120 m / 4 in – 394 ft / 0.1 m – 50 m / 4 in – 164 ft
• Depth rating: 350 m or 1000 m / 1148 ft or 3280.84ft
• Weight in water 0.44 kg or 0.92 kg / 0.97 lbs or 2.03 lbs

Acoustic specifications (Low frequency mode / High frequency mode)

• Operating frequency: 720 kHz / 1200 kHz
• Angular resolution: 1.0° acoustic, 0.25° effective /0.6° acoustic, 0.12° effective
• Range: 0.1 m – 120 m / 4 in – 394 ft / 0.1 m – 50 m / 4 in – 164 ft
• Number of beams: 512 / 1024
• Horizontal beam width: 120° / 120°
• Vertical beam width: 20° / 12°
• Range resolution: 4 mm / 0.2 in / 2.4 mm / 0.1 in
• Update rate: 5 – 65 Hz (mode and range dependent)
• Mode of operation: CHIRP and CW
• Speed of sound: Integrated Velocity of Sound sensor for accuracy

Interface

• Supply voltage: 19 V to 74 V DC
• Power requirement: 9.5 W – 27 W (range dependent)
• Main port protocol: Ethernet
• Auxiliary port protocol: RS232, TTL in, pass-through power (2.5 A max)
• Connector type: Impulse MKS(W)-307-FCR

Physical specification

• Depth rating: 350 m or 1000 m / 1148 ft or 3280.84 ft
• Weight in air: 1.46 kg or 2.03 kg / 3.22 lbs or 4.47 lbs
• Weight in water: 0.44 kg or 0.92 kg / 0.97 lbs or 2.03 lbs
• Temperature rating (operating): -10 °C to 35 °C / 14 °F to 95 °F
• Temperature rating (storage): -20 °C to 50 °C / 4 °F to 122 °F

Software requirements (Minimum / Recommended)

• Included: Genesis
• Processor: 2 GHz / 3 GHz Quad Core
• Graphics: 3D hardware accelerated graphics card
• SDK: Available on request
• Operating system: Microsoft Windows 7, 10

Tritech Gemini Imaging Sonars Comparison

Tritech has a range of Multibeam imaging sonars which can be used for shallow water operations and also deep water operations. The Gemini sonars are suitable for integration onto ROVs, AUVs, Vessel/Pole mounted and Diver Navigation Platforms.

Tritech Micron Gemini	Tritech Gemini 720ik	Tritech Gemini 1200ik	Tritech Gemini 720is
Tritech Micron Gemini Shallow water navigation and obstacle avoidance	Tritech Gemini 720ik Shallow water navigation, obstacle avoidance and target inspection	Tritech Gemini 1200ik Shallow water navigation, obstacle avoidance and high resolution target inspection	Tritech Gemini 720is Deep water navigation, obstacle avoidance and target inspection
