Tritech Gemini Multibeam Imaging Sonar

Tritech Gemini Multibeam Imaging Sonar Incredibly compact and light-weight, operates at 720kHz, to produce images of outstanding clarity.

Tritech Gemini offering a cost-effective solution for obstacle avoidance and navigation for small ROVs/AUV. The system benefits from 128 beams and an effective angular resolution of 0.7. Powered with Tritech’s robust hardware and state of the art signal processing algorithms for producing high-quality sonar imaging. The system operates at 720 kHz and offers an effective angular resolution of 0.7° and a range resolution of 8 mm. In addition to compact dimensions and high quality imaging, it has integrated sensors for depth and temperature and an optional AHRS for bearing, roll and pitch

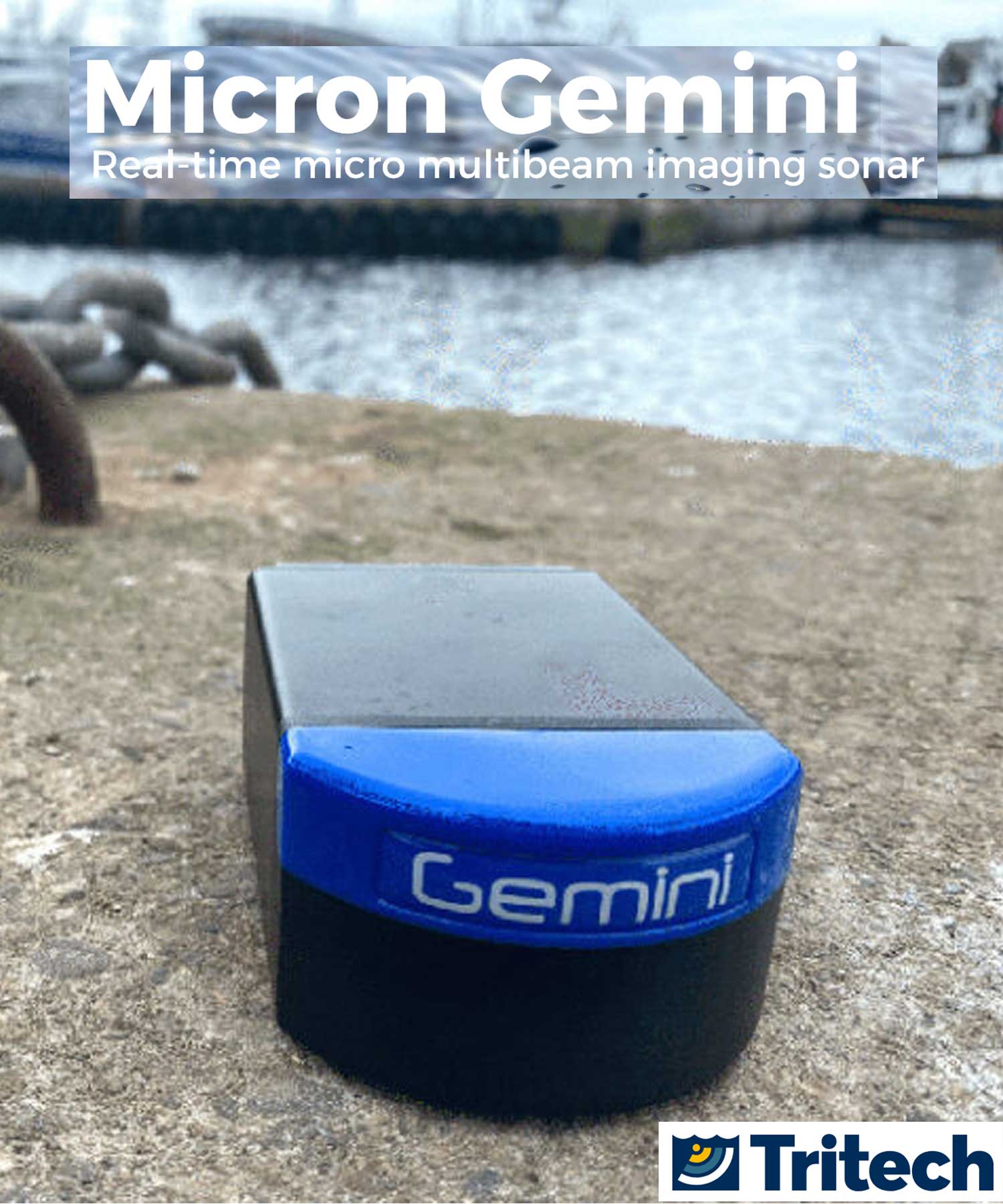

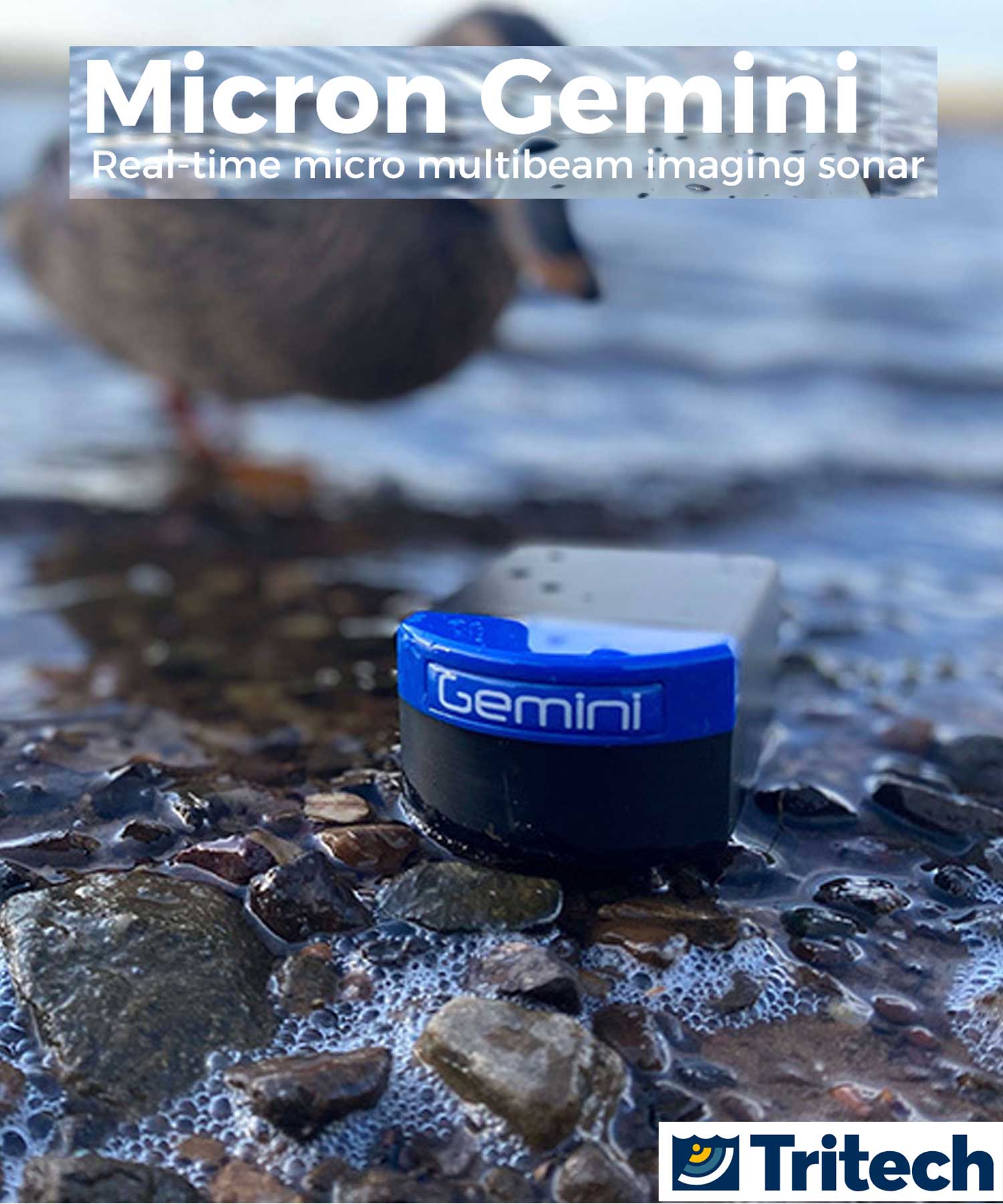

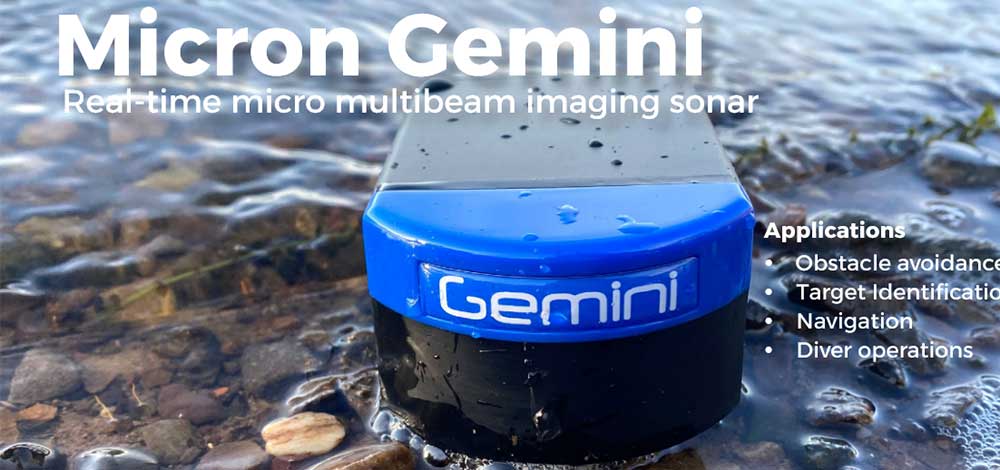

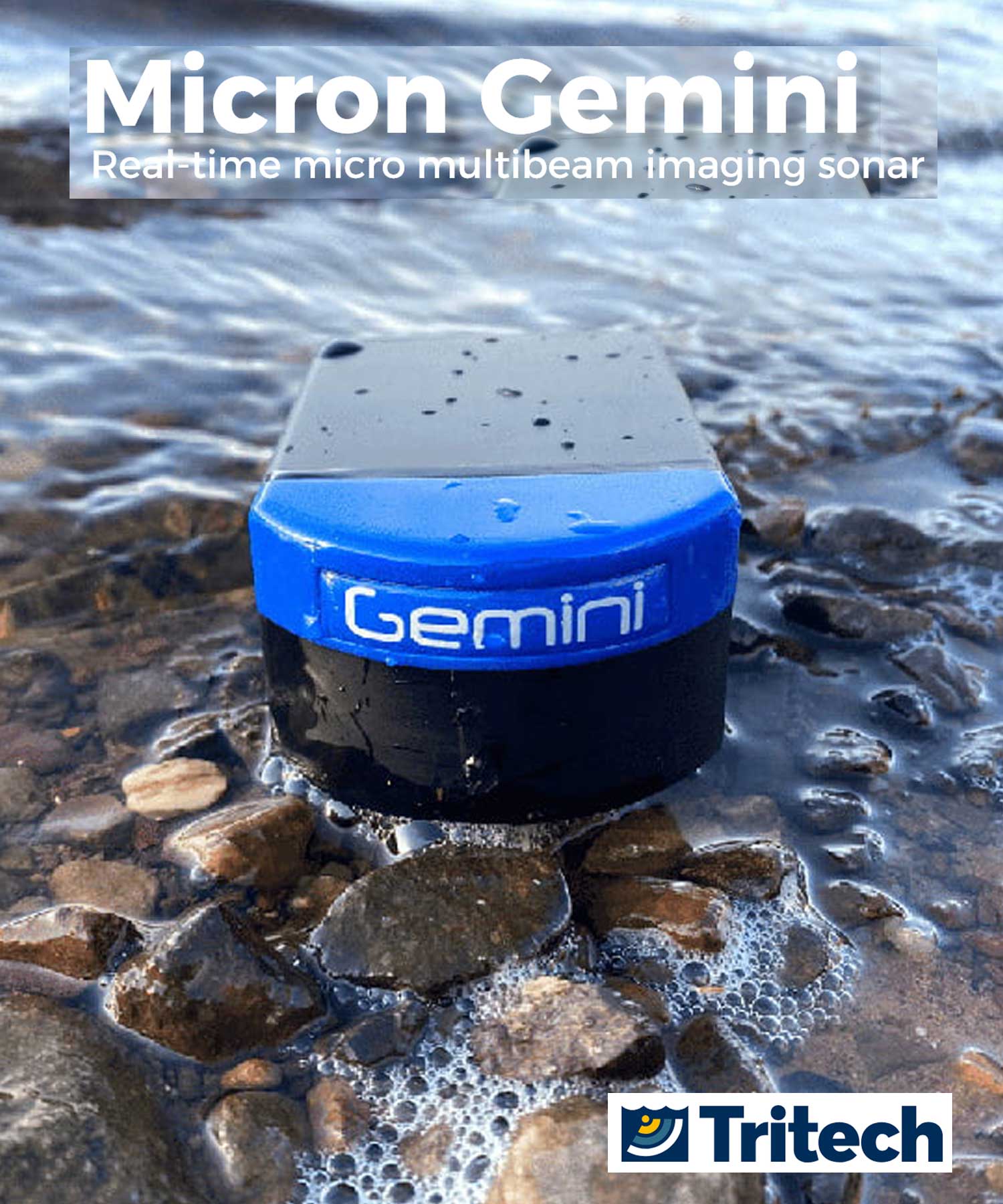

Tritech Micron Gemini real-time micro multibeam imaging sonar

The Micron Gemini is the latest addition to the Tritech’s Micron and Gemini product families. It is incrediblycompact and light-weight, offering a cost-effective solution for obstacle avoidance and navigation for small ROVs/AUVs. It is an obvious choice for the applications where size and weight are critical, but a small mechanical scanning sonar does not offer the required real-time imaging. With Tritech’s advanced processing electronics, the Micron Gemini operates at 720kHz, to produces images of outstanding clarity. The system benefits from 128 beams and an effective angular resolution of 0.7°.

The Micron Gemini comes with a built in pressure sensor which provides a depth reading, as well as optional AHRS. With greatly improved image quality, a 90° horizontal field of view and 50m range, the Micron Gemini offers cost effective obstacle avoidance and navigation for small ROVs and AUVs.

The Micron Gemini has incredibly compact dimensions and is ideally suited for micro ROV/AUV applications when real-time, video-like imagery is required, and where space is restricted or weight is critical, such as diver helmet and pole mounted applications for Search and Recovery (SAR) operations.

Benefits

• Compact and Light-weight
• High-qualit- image
• 90° horizontal field of view
• Ethernet and serial comms
• Serial Auxiliar- port
• Low power

Features

• 20Hz update rate
• 300m or 750m depth rated
• CW & CHIRP processing
• Integrated sensor for depth reading
• Integrated sensor for temperature reading
• Optional built in AHRS

Tritech Gemini Technical information

Key specifications

• Operating frequency 720kHz
• Angular resolution 2.34° acoustic, 0.7° effective
• Range 0.2m to 50m / 0.6ft to 164ft
• Supply voltage 12 to 48V DC
• Power requirement 8.5W
• Main port protocol Ethernet (100Base-T) and/or Serial (RS232 or RS485)
• Dimensions 116mm x 63mm x 40mm / 4.57in x 2.49in x 1.58in
• Depth rating 300m / 1148ft or 750m / 2460ft
• Weight in air 0.43kg / 0.97lbs
• Weight in water 0.24kg / 0.53lbs

Integrated sensors

• Pressure sensor*1 Depth: ±2m Temperature: ±2°C
• AHRS*2 Bearing accuracy: 2° RMS Roll & Pitch accuracy: 1.5° RMS (static)

Acoustic specification

• Operating frequency 720kHz
• Angular resolution 2.34° acoustic, 0.7° effective
• Range 0.2m to 50m / 7.9in to 164ft
• Number of beams 128
• Horizontal beamwidth 90°
• Vertical beamwidth 20° (±10° about horizontal axis)
• Range resolution 8mm / 0.31in
• Update rate 3 to 20Hz (range dependent)
• Mode of operation CW, CHIRP or Auto

Interface

• Supply voltage 12 to 48V DC
• Power requirement 8.5W
• Main port protocol Ethernet (100Base-T) and/or Serial (RS232 or RS485)
• Auxiliary port protocol Serial (RS232 or RS485)
• Connector type Main: Impulse MKS(W)-3L10, Impulse MKS(W)-307 & Tritech Micron Aux: Tritech Micron

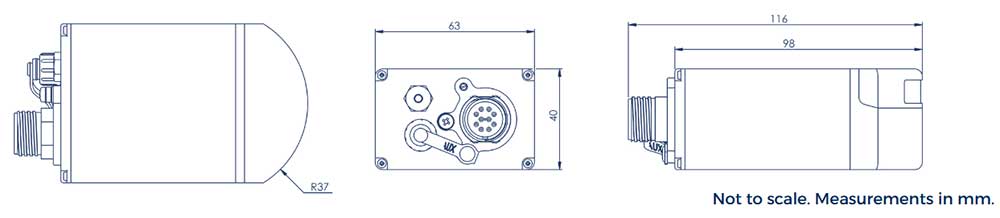

Physical specification

• Dimensions 116mm x 63mm x 40mm / 4.57in x 2.49in x 1.58in
• Depth rating 300m or 750m / 984ft or 2460ft
• Weight in air 0.43kg / 0.97lbs
• Weight in water 0.24kg / 0.53lbs
• Temperature rating (operating) -10°C to 35°C / 14°F to 95°F
• Temperature rating (storage) -20°C to 50°C / 4°F to 122°F

Software

• Genesis: (Included at no additional cost) OS: Microsoft Windows 7, 10 Processor: 2GHz (Minimum), 3GHz Quad Core (Recommended) Graphics: 3D hardware accelerated graphics card
• SDK Windows, Linux (Available on request)

Specification subject to change in line with Tritech’s policy of continual product development

*1 Default. Applicable to 300m depth rated variant only

*2 Additional extra

Tritech Gemini Imaging Sonars Comparison

Tritech has a range of Multibeam imaging sonars which can be used for shallow water operations and also deep water operations. The Gemini sonars are suitable for integration onto ROVs, AUVs, Vessel/Pole mounted and Diver Navigation Platforms.

Tritech Micron Gemini	Tritech Gemini 720ik	Tritech Gemini 1200ik	Tritech Gemini 720is
Tritech Micron Gemini Shallow water navigation and obstacle avoidance	Tritech Gemini 720ik Shallow water navigation, obstacle avoidance and target inspection	Tritech Gemini 1200ik Shallow water navigation, obstacle avoidance and high resolution target inspection	Tritech Gemini 720is Deep water navigation, obstacle avoidance and target inspection
