Tritech Gemini 720is Multibeam Imaging Sonar
Tritech Gemini 720is Multibeam Imaging Sonar, designed for WROVs, ROVs, and AUVs, delivering high-definition, real-time sonar images, Ideal for obstacle avoidance, target detection, and close-range inspection
Tritech Gemini 720is is an industry leading multibeam imaging sonar for WROVs ROVs and AUVs provides high-definition real-time sonar images.
Incredibly compact and light-weight with greatly improved image quality, a 90 horizontal field of view and 50m range, the MicronGemini 720s offers cost effective obstacle avoidance and navigation for small ROVs and AUVs, of Deep water navigation, Obstacle avoidance and Target inspection.

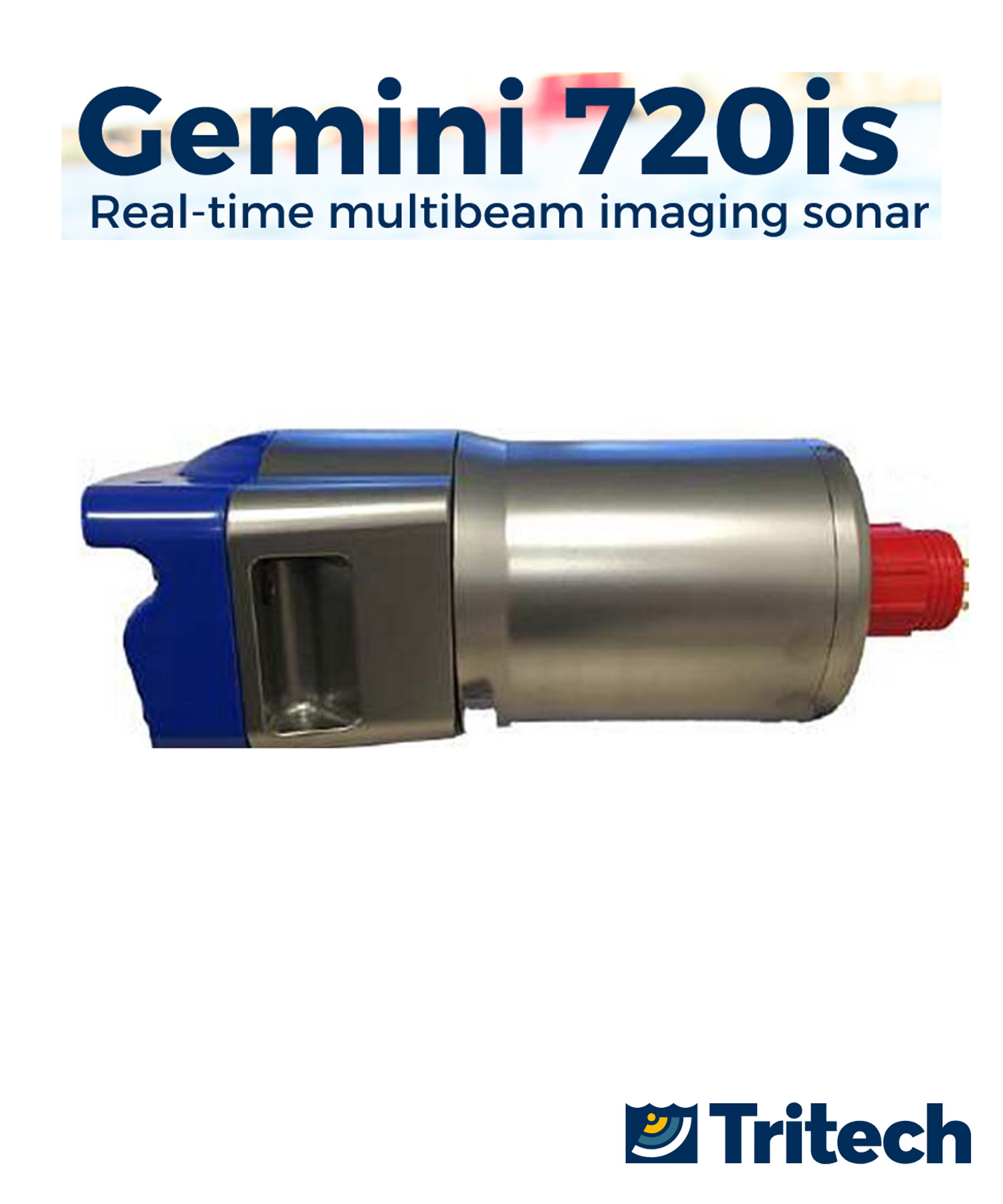

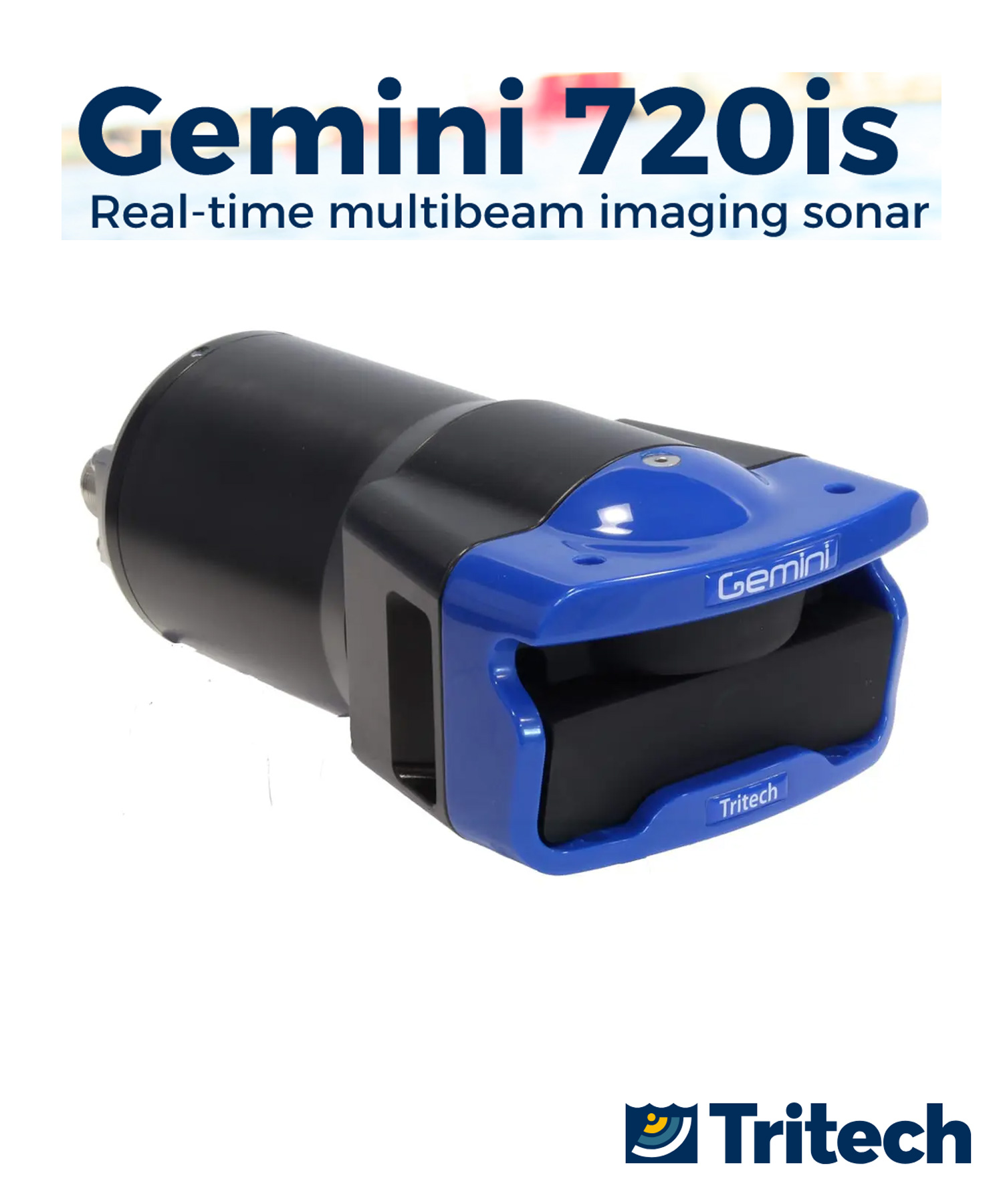

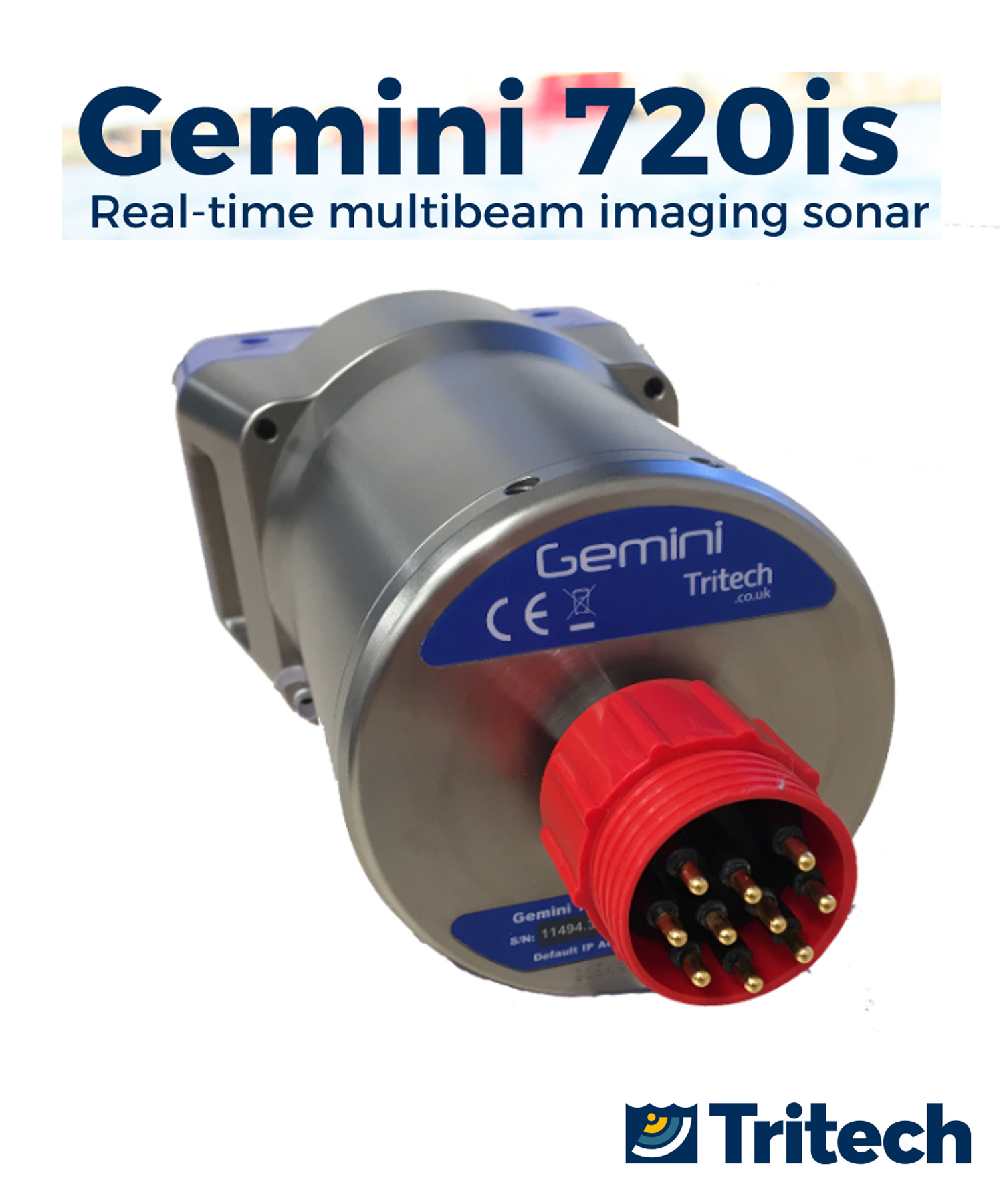

Tritech Gemini 720is Real-Time Multibeam Imaging Sonar
The Tritech Gemini 720is available with a 1000m or 4000m depth rating provides users with real-time, crisp imagery for applications including obstacle avoidance, target detection and close-range inspection. With a 120-degree field of view (10 degree tilt) and a fast update rate of 30Hz, the Gemini 720is sonar is ideal for poor visibility environments. Gemini 720is features a 720kHz operating frequency and an integrated sound velocity sensor to assist in providing the sharpest image possible, with accurate ranging. Redesigned for ease of install onto a variety of ROVs, AUVs and other underwater platforms, the Gemini 720is operates through Ethernet or VDSL communications.
The compact size of the Gemini 720is allows for versatile deployment, including pole-mount assembly (customer-supplied). It is designed for easy installation onto various ROVs, AUVs, and other underwater platforms, supporting both Ethernet and VSDL communications. The standalone Genesis software package offers users a tailored control and display interface, featuring click-and-track functionality and engineering measurement tools.
Key Features:
- Near field focusing
- 8mm range resolution
- Clear wide angle field of view
- Suitable for low visiblity environments
- Easier interpretation of sonar imagery
- 720kHz operating frequency
- CHIRP processing for high resolution imagery
- Wide 120deg eld of view
- Real-time updates for video like imagery
- Integrated velocimeter for accurate ranging
- Ethernet or VDSL communications
- Software Development Kit available
- Software Development Kit available
- SeeByte embedded target algorithm

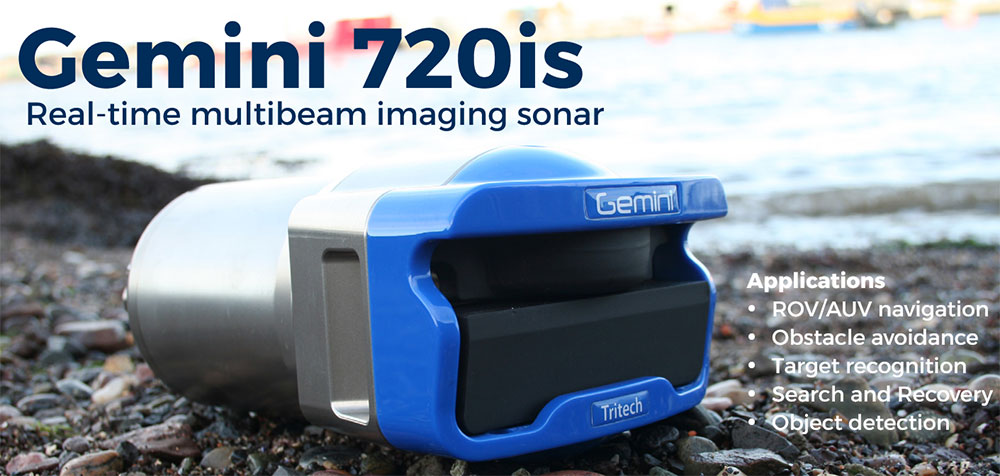

Applications
- ROV/AUV navigation
- Obstacle avoidance
- Target recognition
- Search and Rescue (SAR)
- Salvage operations
- Salvage operations
- Subsea monitoring and inspection
- Object detection
Tritech Gemini 720is Multibeam Imaging Sonar Specification
Key Specification |
|
| Operating frequency | 720kHz |
| Angular resolution | 2.34° acoustic, 0.7° effective |
| Range | 0.2 m to 50 m / 0.6 ft to 164 ft |
| Supply Voltage | 12 to 48 Vdc |
| Power Requirement | 8.5 W |
| Main port protocol | Ethernet (100Base-T) and/or Serial (RS232 or RS485) |
| Dimensions | 116 mm x 63 mm x 40 mm / 4.57 in x 2.49 in x 1.58 in |
| Depth rating | 300 m / 1148 ft or 750 m / 2460 ft |
| Weight in air | 0.43 kg / 0.97 lbs |
| Weight in water | 0.24 kg / 0.53 lb |
Acoustic specifications |
Low frequency mode |
| Operating frequency | 720kHz |
| Angular resolution | 2.34° acoustic, 0.7° effective |
| Range | 0.2 m to 50 m / 0.6 ft to 164 ft |
| Number of beams | 128 |
| Horizontal beam width | 90° |
| Vertical beam width | 20° (±10° about horizontal axis) |
| Range resolution | 8 mm / 0.31 in |
| Update rate | 3 to 20 Hz (range dependent) |
| Mode of operation | CHIRP and CW or Auto |
Integrated sensors |
|
| Pressure sensor*1 | Depth accuracy: ±2 m |
| AHRS*2 | Bearing accuracy: 2° RMS Roll & Pitch accuracy: 1.5° RMS (static |
Interface |
|
| Supply voltag | 12 to 48 Vdc |
| Power requirement | 8.5 W |
| Main port protocol | Ethernet (100Base-T) and/or Serial (RS232 or RS485) |
| Auxiliary port protocol | Serial (RS232 or RS485 |
| Connector type | Main: Impulse MKS(W)-3L10, Impulse MKS(W)-307 & Tritech Micron Aux: Tritech Micron |

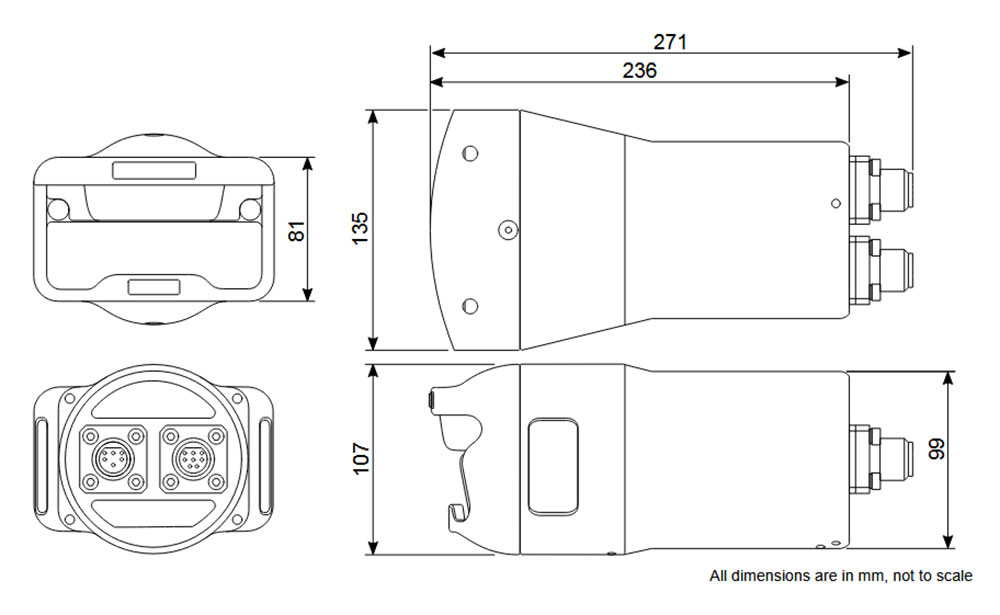

Physical specification |
|
| Dimensions | 116 mm x 63 mm x 40 mm / 4.57 in x 2.49 in x 1.58 in |
| Weight in air | 0.43 kg / 0.97 lbs |
| Depth rating | 300 m / 1148 ft or 750 m / 2460 ft |
| Weight in water | 0.24 kg / 0.53 lb |
| Temperature rating (operating) | -10 °C to 35 °C / 14 °F to 95 °F |
| Temperature rating (storage) | -20 °C to 50 °C / 4 °F to 122 °F |
Software |
|
| Genesis: (Included) | OS: Microsoft Windows 7, 10, 11 - 2 GHz (minimum) 3 GHz Quad Core (recommended) |
| SDK | Windows, Linux (Available on request) |
Tritech Gemini Imaging Sonars Comparison
Tritech has a range of Multibeam imaging sonars which can be used for shallow water operations and also deep water operations. The Gemini sonars are suitable for integration onto ROVs, AUVs, Vessel/Pole mounted and Diver Navigation Platforms.
Tritech Micron Gemini |
Tritech Gemini 720ik |
Tritech Gemini 1200ik |
Tritech Gemini 720is |
 |
 |
 |
 |
| Tritech Micron Gemini Shallow water navigation and obstacle avoidance | Tritech Gemini 720ik Shallow water navigation, obstacle avoidance and target inspection | Tritech Gemini 1200ik Shallow water navigation, obstacle avoidance and high resolution target inspection | Tritech Gemini 720is Deep water navigation, obstacle avoidance and target inspection |
Specification |
Tritech Micron Gemini |
Tritech Gemini 720ik |
Tritech Gemini 1200ik |
Tritech Gemini 720is |
||
| Operating frequency | 720 kHz | 720 kHz | 720 kHz | 1200 kHz | 720 kHz | |
| Horizontal beamwidth | 90° | 90° | 120° | 120° | ||
| Vertical beamwidth | 20° | 20° | 20° | 12° | 20° | |
| Effective angular resolution | 0.7° | 0.25° | 0.25° | 012° | 0.25° | |
| Maximum range | 50 m | 120 m | 120 m | 50 m | 120 m | |
| Range resolution | 8 mm | 4 mm | 4 mm | 2.4 mm | 4 mm | |
| Minimum range | 0.2 m | 0.2 m | 0.1 m | 0.2 m | ||
| Supply voltage | 12 to 48 V DC | 19 to 74 V DC | 19 to 74 V DC | 19 to 74 V DC | ||
| Comms | Ethernet Serial (RS232 / RS485) | Ethernet | Ethernet | Ethernet VDSL |
||
| Material | Aluminium | Aluminium | Aluminium | Alu | Aluminium | |
| Depth rating | 300 m or 750 m | 350 m | 350 m | 1000 m | 1000 m | 4000 m |
| Weight in air | 0.43 kg | 1.40 kg | 1.46 kg | 2.03 kg | 3.4 kg | 5.0 kg |
| Weight in water | 0.24 kg | 0.43 kg | 0.44 kg | 0.92 kg | 1.3 kg | 3.0 kg |
| Temperature rating | -10 °C to 35 °C (operating), -20 °C to 50 °C (storage) | |||||
